Innovo

Control System

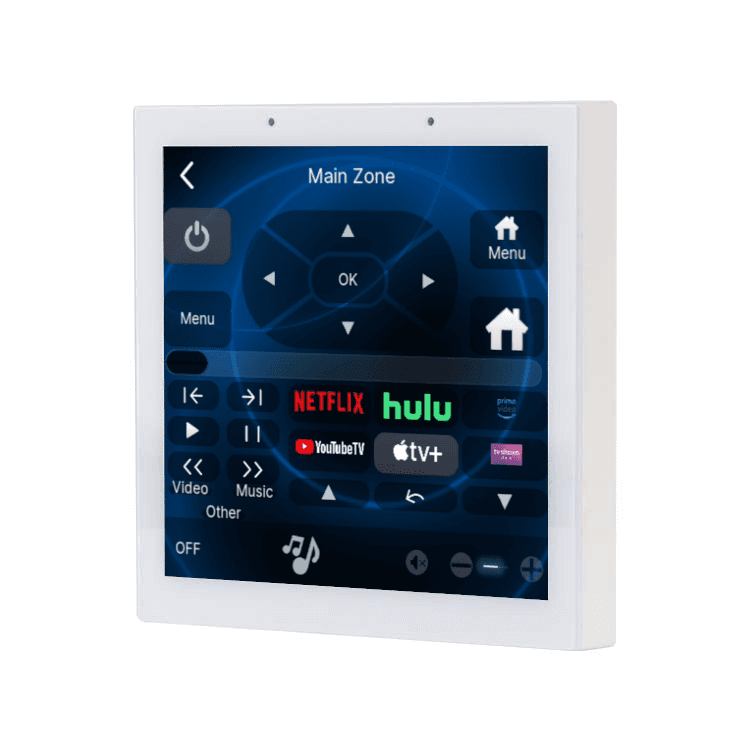

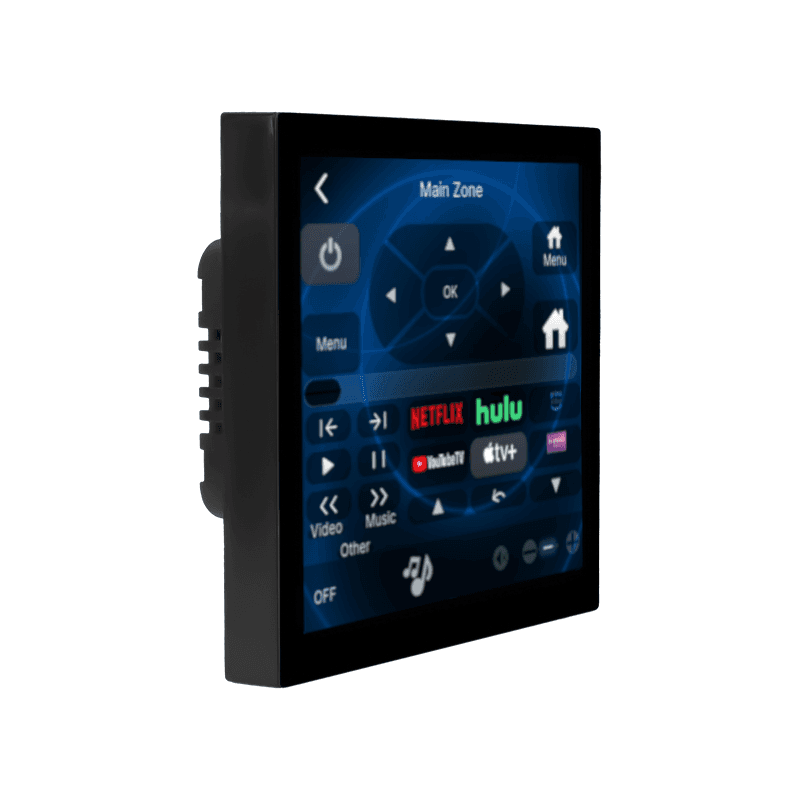

4 Inch Touch Panel

4 Inch Touch Panel

Description

Re-Introducing the new 4 inch touch panel with many features and upgrades.

Native Display available for Nice, Control 4, Lutron or Rako

  1.  Faster processor

  2.  Better resolution

  3.  Fully compatible with the latest Nice, Control 4, Lutron and Rako systems.

  4.  Native apps

  5.  New fully admin tool to help setup

  6.  WiFi (Coming Soon) or POE

  7. 100-240 50/60 VAC


Say hello to the impressive new 4 Inch Touch Panel designed for Nice, Control 4, Lutron, or Rako systems. This touch panel seamlessly connects to the control systems controller and boasts support for most, if not all, app functionalities.

It’s not just elegant, but also highly responsive, designed by installers for installers. Whether you prefer power over Ethernet (POE) or AC, this panel has you covered, featuring a built-in dual microphone and speaker, along with an ambient light sensor. It’s even capable of functioning as an intercom, making it ideal for small areas, bedrooms, entrances, or any space that requires a compact screen.

Rest assured, this top-notch device is curated, customized, imported, sold, shipped, and fully supported by Innovo, offering a unique and specialized experience. It’s important to note that this exceptional product is not manufactured by the Nice, Control 4, Lutron or Rako corporation.


Spec Sheet is here: 4 inch Panel.

Dimensions

86mm*86mm*37mm

Display Size

4 Inch

CPU

Quad Core A55, 1.8Ghz

Resolution

480*480

Touch Panel

5 Points Capacitive Touch Panel, IPS

Network

WiFi

802.11b/g/n

Ethernet

10M/100M with POE

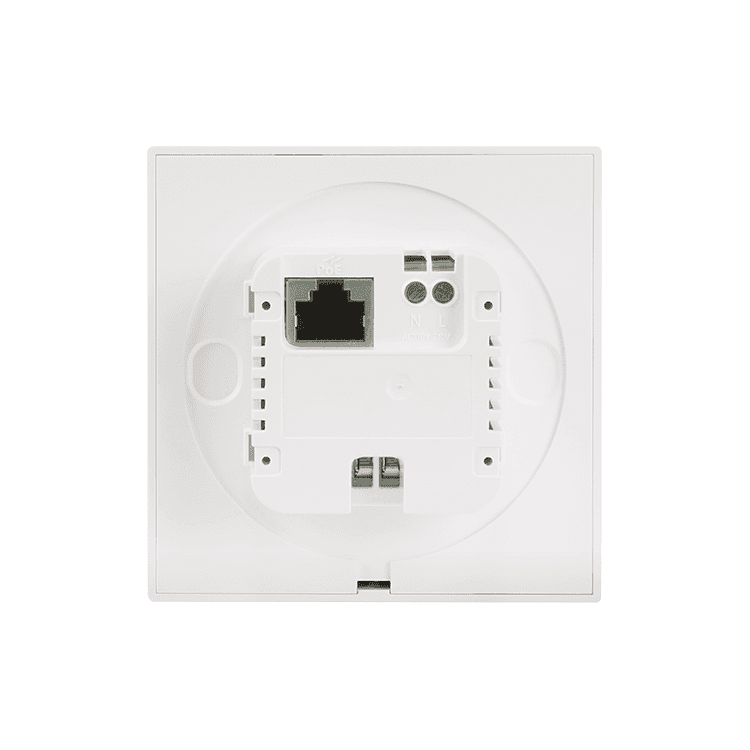

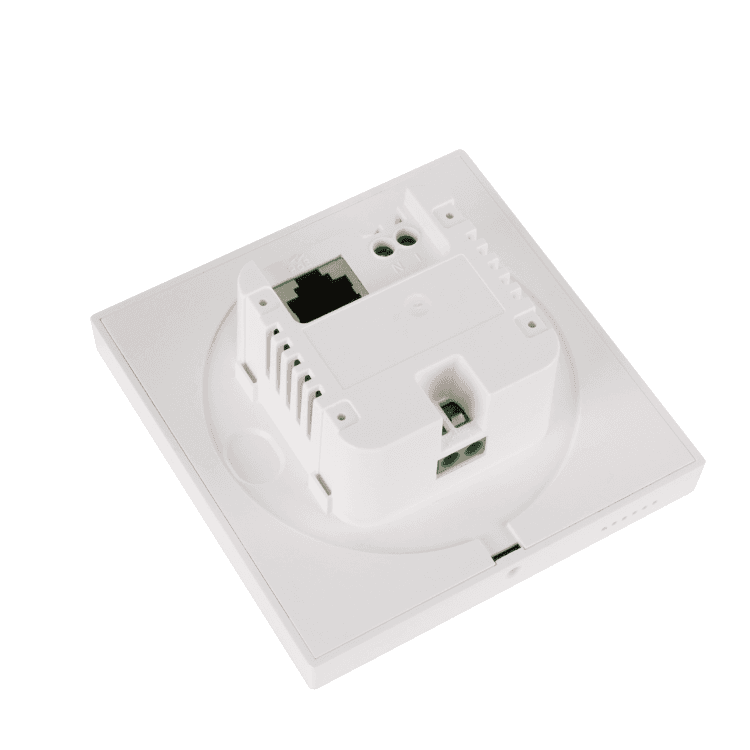

I/O Ports

RJ45

10M/100M with POE

RS485

2 Pin





Features

Microphone

Dual Mic Built In

Speaker

Built in 1W

Light Sensor

Yes

Cooling

Fanless Air-Cooled





Supported Media

Video

MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB

Audio

MP3 / WMA / WAV / AAC / FLAC / OGG





Details

Camera

No

Battery

No

Mount

In Wall with T86 Box

Power

POE IEEE 802.3af or Better

Working Temp

.5 – 70 C

Color

Black





Supported Features

Intercom

Yes

Video Conference

No

Warranty

1 Year

Viewer Tabs

All Elan Tabs Supported (Viewer license required)
