KRIX

MX-40

MODULAR

Downloads

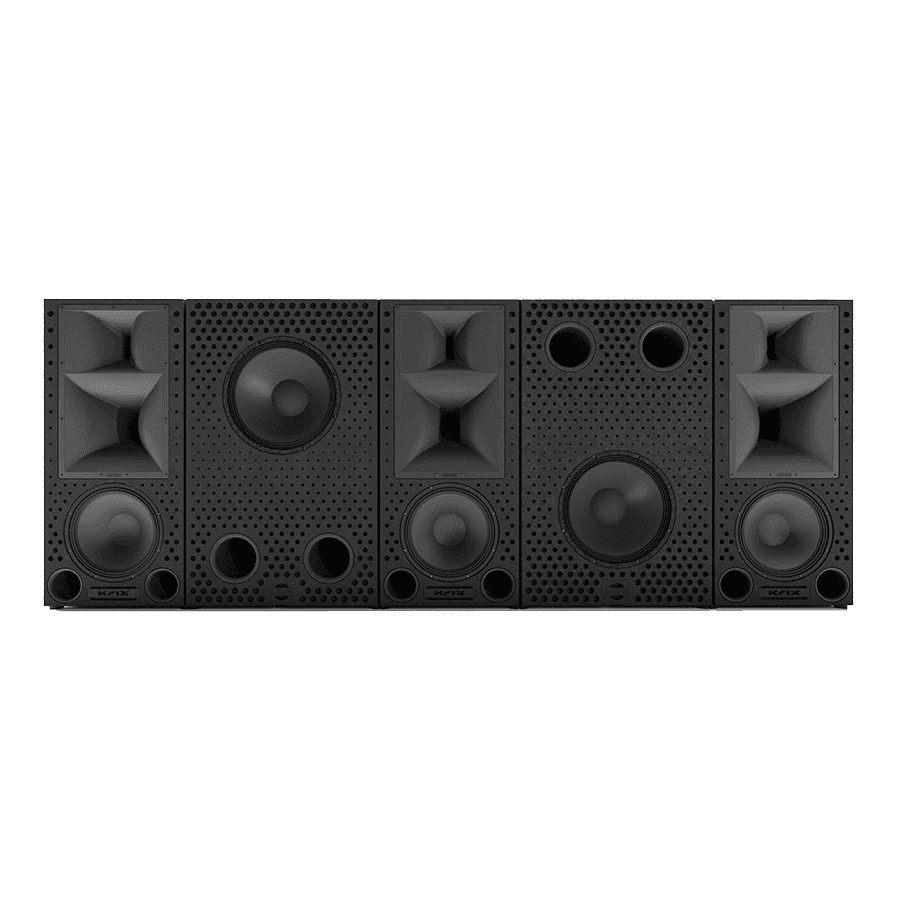

The MX-40 is the flagship system of the Series MX range. Featuring a 3-way design, it is capable of immense sound pressure levels while maintaining the absolute highest level of soundtrack reproduction.

The MX-40 screen speaker system is the first in the Series MX range to incorporate a 3-way design – delivering an incredibly smooth, consistent and compelling experience that encompasses the true dynamic power and clarity of real cinema sound.

Much like the MX-30, the MX-40 is best suited to larger home cinemas that are five to fourteen metres in depth. The new 3-way design features a dedicated high frequency compression driver and newly engineered 152mm midrange driver, both coupled to a brand new single-mould, dual-horn system that has been developed by Krix over three years. Principle benefits of the horn are a uniform, constant directivity pattern, improved frequency response and extremely low distortion, even when pushed to extreme sound pressure levels.

The 380mm bass drivers are made from a high stiffness paper cone, with a 75mm voice coil for increased linear excursion and a powerful vented magnet assembly lowers distortion.

Each of the two subwoofers contain a 455mm driver with 100mm voice coil, dual spider and vented magnet assembly for clean, tight and powerful bass that you’ll hear… and feel.

The MX-40 is the first Series MX system that is bi-ampable and incorporates two pairs of binding posts per speaker module. The patterned acoustic material on the front baffle gives the unit a refined style and increases the overall surface area of absorption.

For the ultimate cinema experience at home, play it through Krix.

Specification

Recommended room depth

5m – 14m


Minimum screen size 16:9

145″ (3210mm x 1806mm)


Minimum screen size 21:9

140″ (3268mm x 1401mm)



LCR SPEAKER MODULES

Frequency range

38Hz-16kHz in room response


Power handling

Low frequency element 100 – 700 Watts RMS recommended amplifier power

High frequency element 100 – 400 Watts RMS recommended amplifier power


Sensitivity

Low frequency element 98dB for 2.83 volts at 1 metre

High frequency element 101dB for 2.83 volts at 1 metre


Impedance

Low frequency element 8 Ohms

High frequency element 8 Ohms


Configuration

3-way Bi-amp


Crossover frequency

400Hz Active crossover required – see manual for recommended crossover settings


Enclosure type

Bass reflex, front vented


Low frequency driver

Single 380mm (15″) high stiffness paper cone driver with 75mm (3″) voice coil of optimal length for increased linear excursion, wound on high temperature apical former and powerful vented magnet assembly designed for low distortion


Mid frequency driver

Krix proprietary 90º x 40º short throw dual horn with 152 mm (6″) paper cone driver, ferrite magnet, 38 mm (1 ½”) voice coil and copper shorting ring


High frequency driver

Krix proprietary 90º x 40º short throw dual horn with 25mm (1′)’ throat, 35mm (1.4”) compression driver, ferrite magnet, coated titanium diaphragm and polyimide surround


Input terminals

Gold plated spring terminals


Dimensions

1220mm high x 550mm wide x 335mm deep (3165mm wide including subwoofer modules)


Weight

65kg each



SUBWOOFER MODULES

Frequency range

25Hz-200Hz in room response


Power handling

200 – 1400 Watts RMS recommended amplifier power


Recommended processing

High pass filter: 20Hz 24dB / Octave Butterworth

Limiter: 1000W (8 Ohms)


Sensitivity

100dB for 2.83 volts at 1 metre


Impedance

8 Ohms


Enclosure type

Bass reflex, front vented


Low frequency driver

Single 455mm (18”) paper cone driver. 100mm (4”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly


Input terminals

High level gold plated spring terminals


Dimensions

1220mm high x 750mm wide x 335mm deep (3165mm wide including LCR modules)


Weight

65kg each
