KRIX

LX-7

LINEAR LCR

Downloads

It's not a soundbar... It's a sound experience.

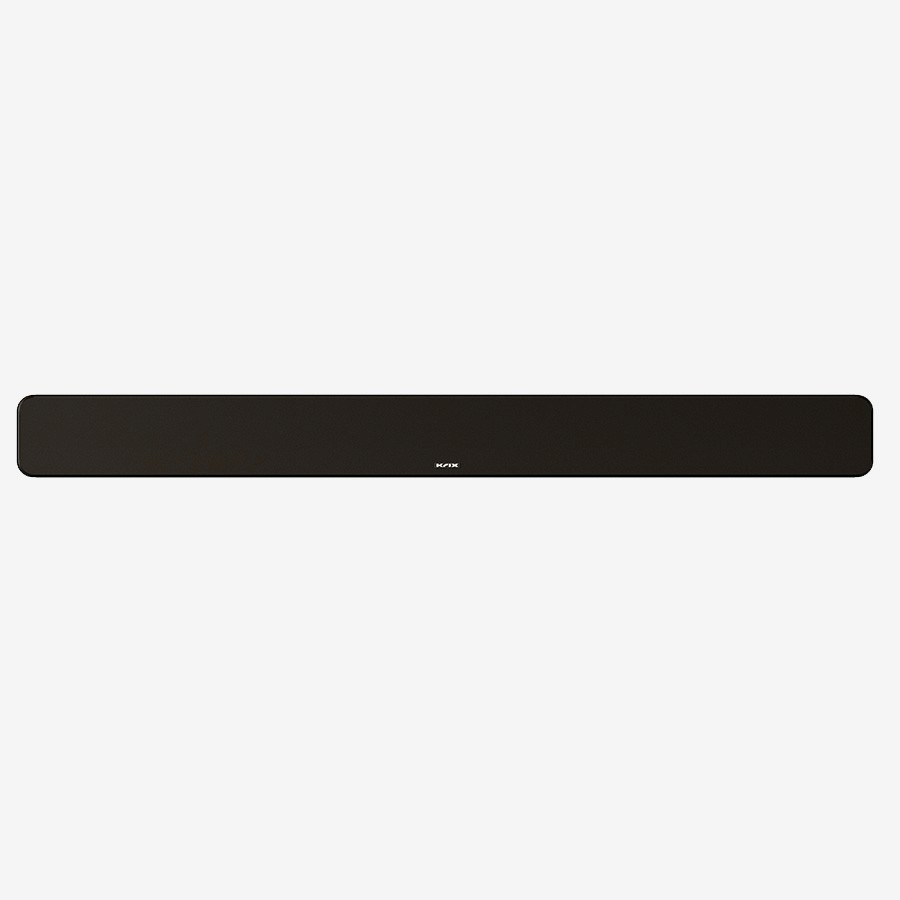

The LX-7 is a stylish, high-performance passive loudspeaker, custom-built in Australia for screen sizes 75 inch and above.

Featuring left, centre and right channels, it can be combined with surround speakers and an AVR/processor to create a genuine, immersive cinema soundscape without the need for virtual or ‘bouncing’ effects. The sleek design requires minimal space above or below your screen. The LX-7 is intended to be combined with a Krix subwoofer(s) to accurately reproduce the lowest frequencies for the very highest level of home cinema performance.

Tilting bracket

Using the included bracket, the LX-7 can be mounted flush against the wall or at adjustable angles up to 15 degrees for optimal sound dispersion.

Tonally matched

The LX-7 is tonally matched to all Krix surround and overhead speakers.

Unparalleled Sound

Three 90 x 90 Krix short throw waveguides significantly improve dispersion characteristics and increase efficiency for very high output levels.

For the ultimate sound experience at home, play it through Krix.

Specification

Frequency range

60Hz-20kHz in room response


Power handling

50-250 Watts RMS recommended amplifier power


Sensitivity

92dB for 2.83 volts at 1 metre


Impedance

8 Ohms


Configuration

2-way


Enclosure type

Bass reflex, front vented, 12mm braced MDF


Low frequency driver

Single 165mm (6 1/2”) paper cone. 50mm (2”) voice coil wound on high powered kapton former, with ventilated spider and aluminum flux stabilisation ring for low distortion


High frequency driver

26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 90 short throw waveguide


Crossover point

1.9kHz


Input terminals

High current terminals featuring 5mm hole to accept up to 10 AWG cable


Dimensions

Various – see specification sheet


Weight

Various – see specification sheet
