Description
Specifically designed to accompany and complement our DML500 and DML500A loudspeakers.
High output subwoofer system, bass reflex, semi horn-loaded port design
Can be used in single, dual, and quad configurations
Scales into dual and quad systems
Details that make it professional
Professional 16-ply birch construction with wear-resistant polymer coating

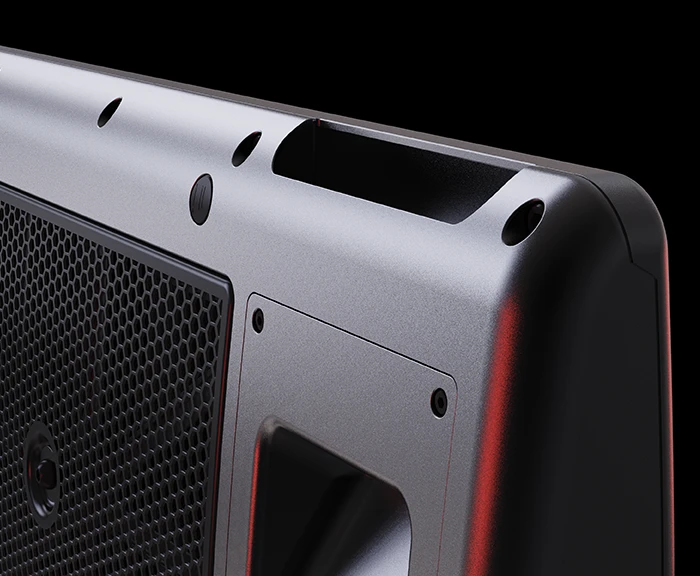

Four recessed handles for simplified handling and carrying
Acetyl copolymer, high impact, low friction feet are located on the bottom to allow lock-in and easy cabinet movement

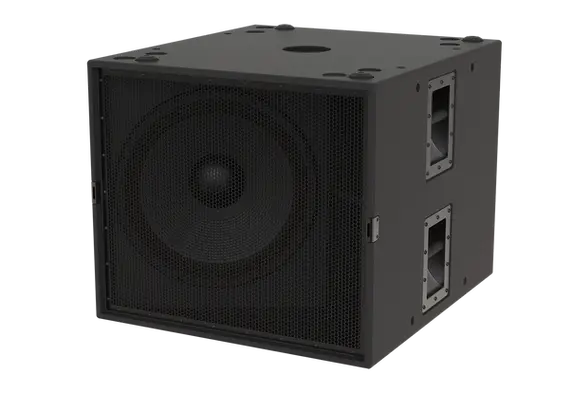

Where our DML500 loudspeaker leaves off, the LS118 takes over
Remarkably compact, this high output subwoofer delivers impressive, tight low frequencies that blend perfectively with our full-range speakers.
With an 18” direct radiating transducer, the LS118 produces high sound pressure levels with fast dynamics and musical reproduction of very low frequencies.
Its 18-inch woofer is armed with massive vented magnets and 4” copper voice coil. Power handling is an impressive 3500W peak and 1200W continuous.
The LS118 is an impressive complement to our DML500 and DML500A loudspeakers
As a companion to our DML500 and DML500 loudspeakers, or as a tight, focused bass source for portal PA systems, the LS118 will impress your audience.
Details
LS118 System (single)
Frequency range (-10dB) | 30Hz –150Hz |
Frequency response (-6dB) | 36Hz –100Hz |
System sensitivity | 100 dB |
Rated maximum SPL | 138dB (peak) |
System nominal impedance | 8 ohms |
LS118 System (quad)
Frequency range (-10dB) | 30Hz –150Hz |
Frequency response (-6dB) | 36Hz –100Hz |
System sensitivity | 100 dB |
Rated maximum SPL | 144dB |
System nominal impedance | 8 ohms |
Power handling
Continuous/Program/Peak | 1200W/2400W/3500W |
Suggested high pass filter | 32Hz Butterworth 4th order |
Suggested low pass filter | 100-120Hz (user defined) |
Drivers
Low frequency transducers | 18-inch woofer |
Voice coil diameter | 100mm |
Voice coil winding wire | Copper-clad aluminum |
Magnetic motor | Neodymium |
Design
Design principle | Bass reflex with horn-loaded port |
Hardware attachments
Internal M10 “L” brackets | 16 locations |
Pole mount | Top mount M20 |
Physical
Outer dimensions (H x W x D) | 28 in x 25 in x 30 in700 mm x 622 mm x 763 mm |
Weight | 114 lbs / 51.7 kg |
Shipping dimensions | 34 in x 33 in x 33 in850 mm x 840 mm x 840 mm |
Shipping weight | 134 lbs /60.8 kg |
