STEALTH ACOUSTICS

L-RAD 430

INVISIBLE SPEAKERS

Downloads

3-WAY 8TH GENERATION INVISIBLE LOUDSPEAKER

The LineaRadiance 430 (L-RAD 430) is a 3-way speaker with dual 8” woofers mounted on an all-new 16” x 30” frame, delivering astounding results!

The L-RAD 430 loudspeaker system becomes completely invisible after installation in a wall or ceiling, and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for nonstandard wallboard finishing materials. Advanced finishing methods such as veneer treatments may be supported using special techniques.

The Stealth Acoustics L-RAD 430 incorporates dual acoustically coupled high quality low profile, high-power 8” cone woofers, a 30mm direct coupled neo-magnet mid-frequency driver, and a 25mm direct coupled neo-magnet high-frequency driver. Advanced internal materials allow for smooth frequency extension from 20 kHz down to 35 Hz. The L-RAD 430 contains two independent protection circuits (high/mid-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.

LineaRadiance speakers are the 8th generation and next evolution of Stealth Acoustics’ LineaResponse flat radiating diaphragm speakers first released in 2003. Up to 5 new LineaRadiance speaker models are planned for release in 2024 for a full ‘family’ of 8th-generation invisible speaker/subwoofer offerings.

NEW FEATURES FOR LINEARADIANCE SPEAKERS:

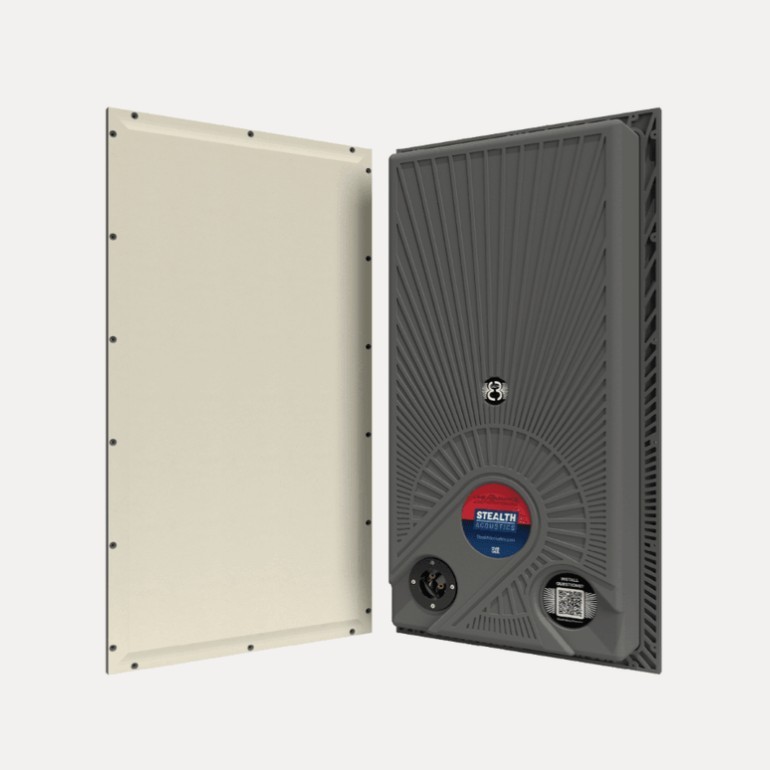

  • Integrated, acoustically tuned back box included with every speaker (removable)

  • New transducer/exciter driver designs

  • Increased overall efficiency

  • Fidelity Glass Advanced™ tuned and dampened fiber diaphragm

  • Easy-Tape™ tapered frame/diaphragm for improved finishing

  • Increased power handling

  • Re-voiced crossover networks

  • Increased overall diaphragm surface areas on many models

  • The new woofer mount for increased internal air volume

  • Improved poly-switches

  • New paper-finish diaphragm for better material adhesion
