KRIX

IW-50

IN-WALL

Downloads

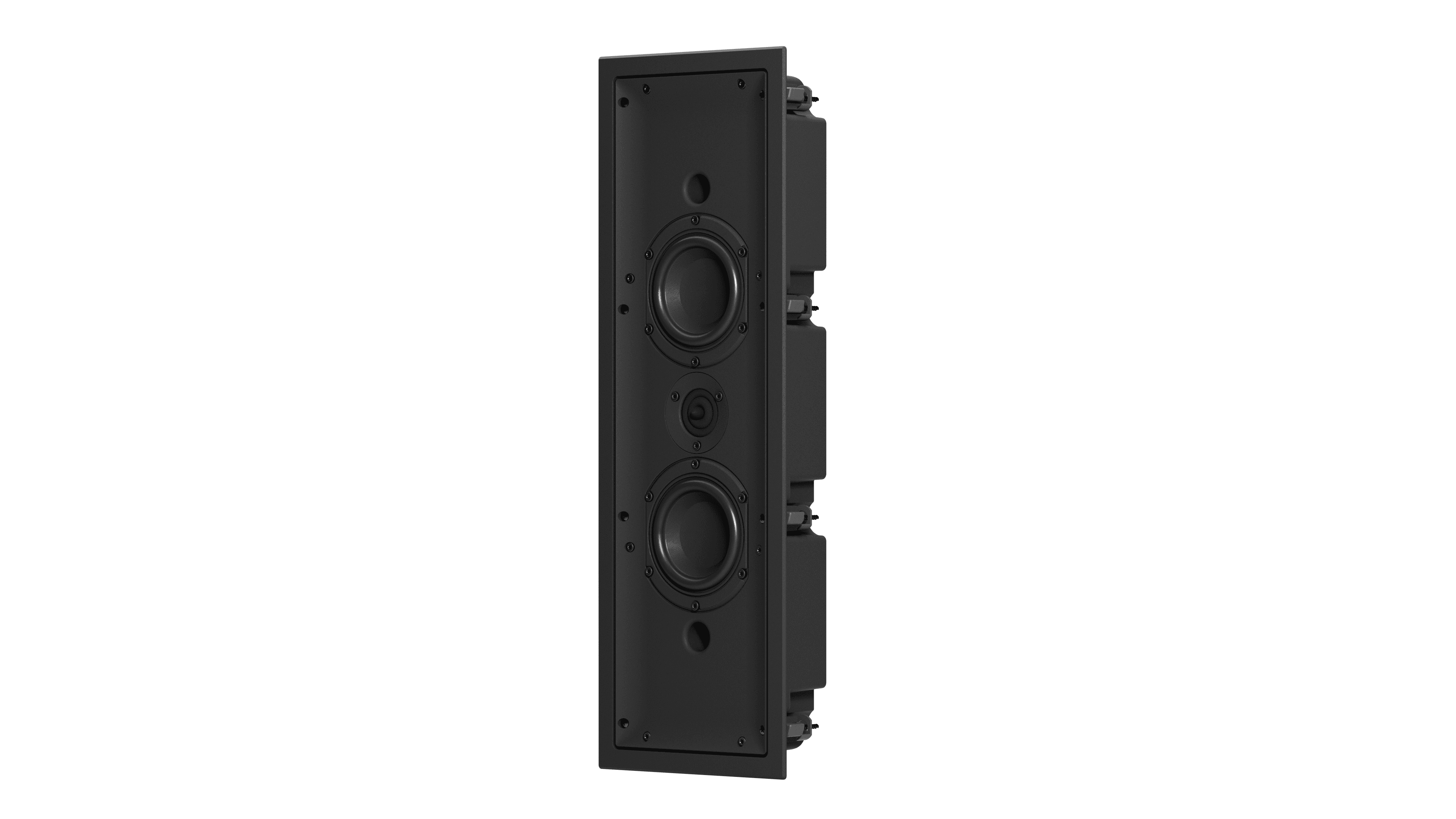

Discretely hidden behind a one-piece magnetic grille, the IW-50 presents an exceptional soundstage for music and movies.


Perfect for home theatre or your media room as main front speakers or side and rear surrounds, the IW-50 (Symmetrix) also perform equally well for two-channel stereo, with the ability to produce your favourite album with power and clarity.

The fully enclosed rear cabinet guarantees the best possible bass performance, independent of the shape or size of the wall cavity, and also minimises sound transference into adjoining rooms.

With an effective dual 100mm bass driver design and a 26mm ring radiator tweeter that boasts a wave guide centre plug for controlled directivity, the IW-50 allows you to experience a well-balanced tonal structure with excellent bass output, all with a depth of clarity unsurpassed in a speaker of this size.

The IW-50 will fit into a standard 70mm stud wall, allowing 10mm for gyprock depth. The stainless steel, single piece trimless grille is rust-resistant and comes in a white finish that can be easily painted to match your wall colour.

For the ultimate sound experience at home, play it through Krix.

Specification

Frequency range

55Hz-40kHz in room response


Power handling

20 – 140 Watts RMS recommended amplifier power


Sensitivity

89dB for 2.83 volts at 1 metre


Impedance

Nominally 6 Ohms (minimum 3.5 Ohms)


Configuration

D’Appolito, 2-way


Cut-out dimensions

555mm x 170mm recommended


Low frequency drivers

2 x nominal 100mm (4”) doped paper cones. 25mm (1”) voice coil wound on high temperature Kapton former


High frequency driver

26mm (1”) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Neodymium magnet


Input terminals

Gold plated spring terminals


Enclosure type

Bass reflex, front vented


Dimensions

596mm high x 211mm wide x 79mm mounting depth


Weight

4kg each
