KRIX

IC-32

IN-CEILING

Downloads

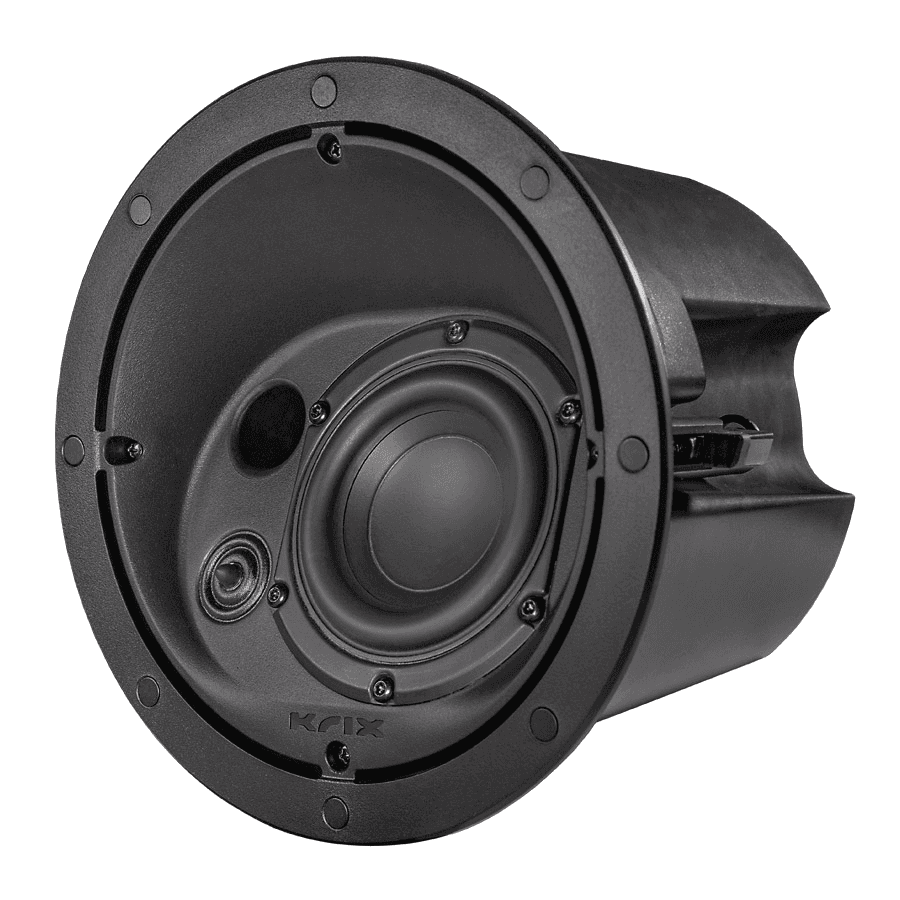

Featuring an angled baffle behind the slim magnetic grille, the IC-32 directs sound towards your seating position for improved clarity in high definition music and movies.


Part of the Krix Architectural Series, the IC-32 (Hemispherix A20) can be used for home theatre, stereo listening, or high-quality background music. It features a 20 degree angled baffle to project the sound to your primary listening area, meaning less sound is reflected off walls and other surfaces. Your experience is clearer, there is a more three-dimensional soundstage, better definition for music listening, more articulate dialogue, and more realistic and involving sound effects in movies.

The fully-enclosed back box maximises and controls bass, protects from ceiling debris and drastically reduces sound leakage into adjoining rooms. With speaker components mounted directly to the front baffle of the speaker, the IC-32 delivers a true high fidelity sound in a neat package.

Tonally balanced to the Krix floorstanding and bookshelf range, the IC-32 allows you to enjoy accurate and controlled bass, as well as midrange clarity delivered by a 100mm driver with a large magnet and aluminium shorting ring. Extended high frequency performance is provided by the 26mm ring radiator tweeter.

The paintable bezel grille, which is slim and attractively-styled in rust-resistant stainless steel, locks onto magnets at the front of the speaker for easy installation, producing the ultimate sound with magical simplicity.

For the ultimate sound experience at home, play it through Krix.

Specification

Frequency range

65Hz-40kHz in room response


Power handling

20 – 100 Watts RMS recommended amplifier power


Sensitivity

86dB for 2.83 volts at 1 metre


Impedance

Nominally 6 Ohms (minimum 4.2 Ohms)


Configuration

2-way


Enclosure type

Bass reflex, front vented


Low frequency driver

Nominal 100mm (4”) doped paper cone. 25mm (1”) voice coil wound on high temperature Kapton former


High frequency driver

20mm (3/4″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Neodymium magnet


Input terminals

Gold plated spring terminals


Cut-out diameter

207mm recommended


Dimensions

255mm diameter x 157mm mounting depth


Weight

2kg each
