Description

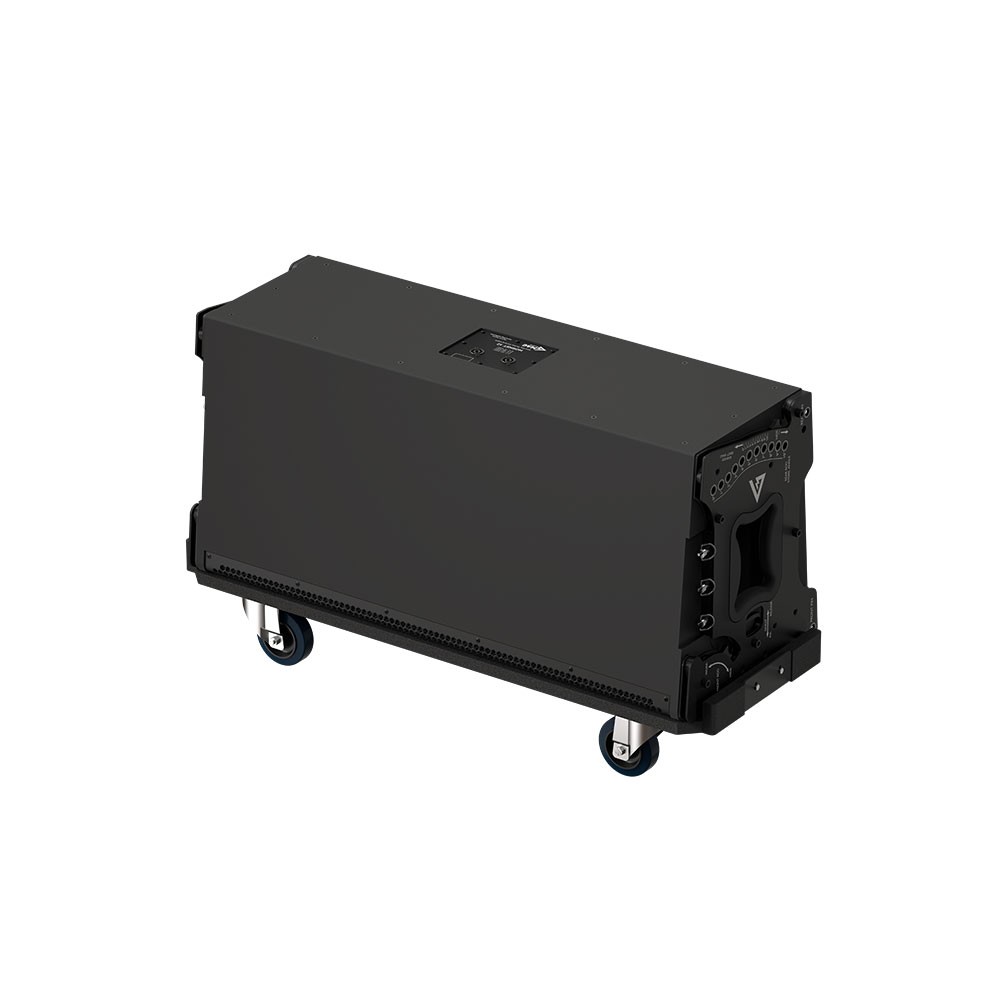

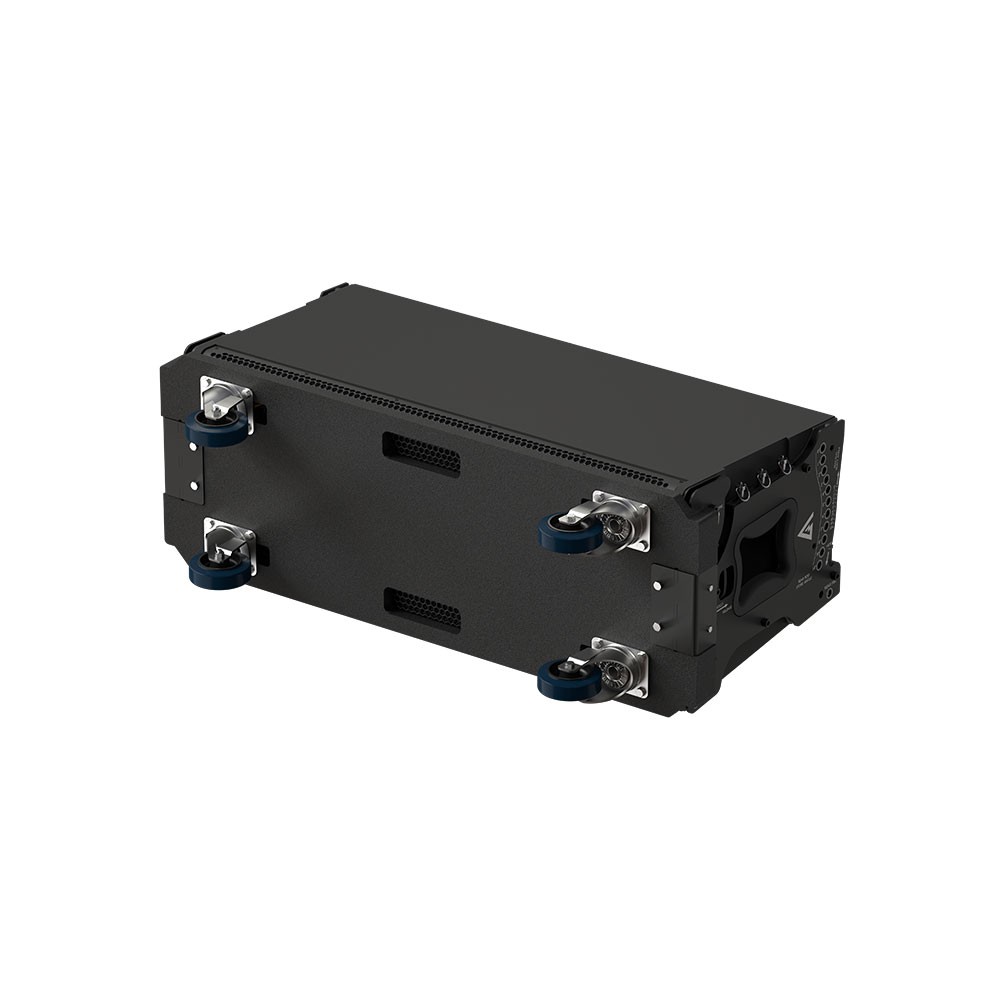

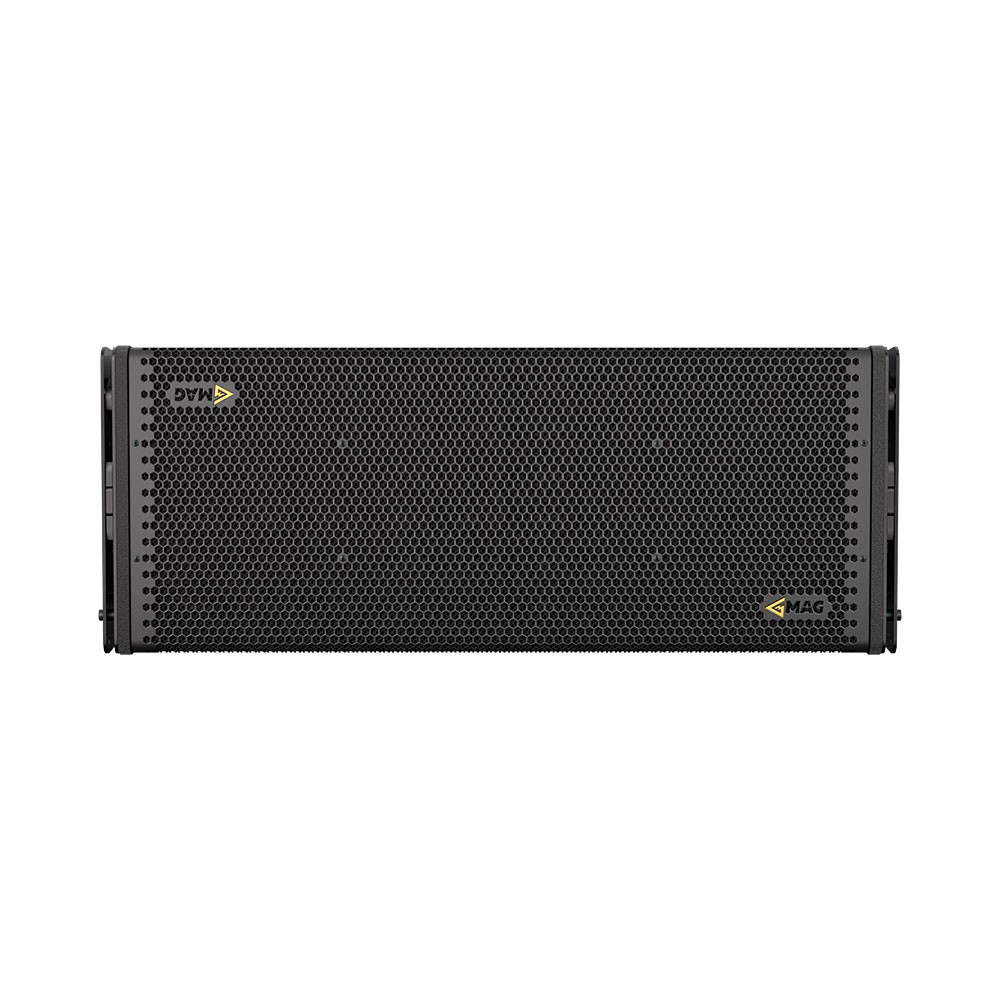

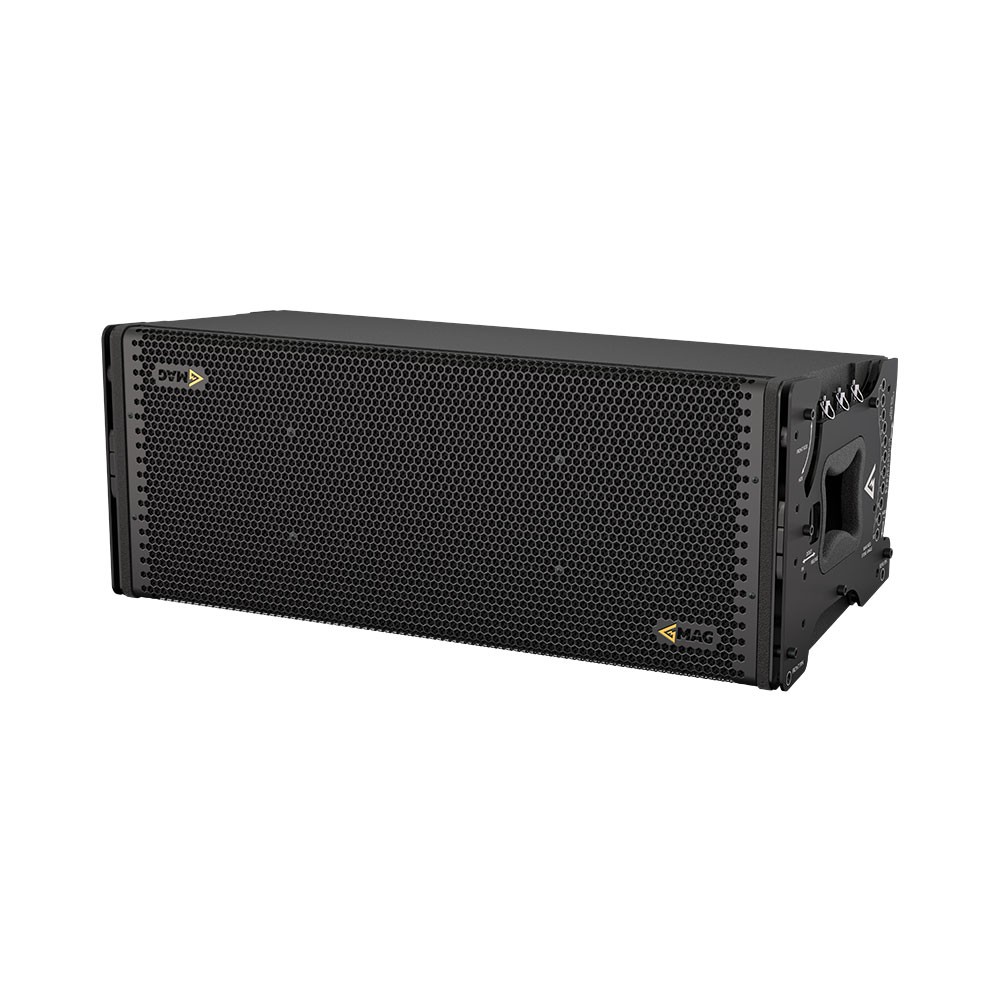

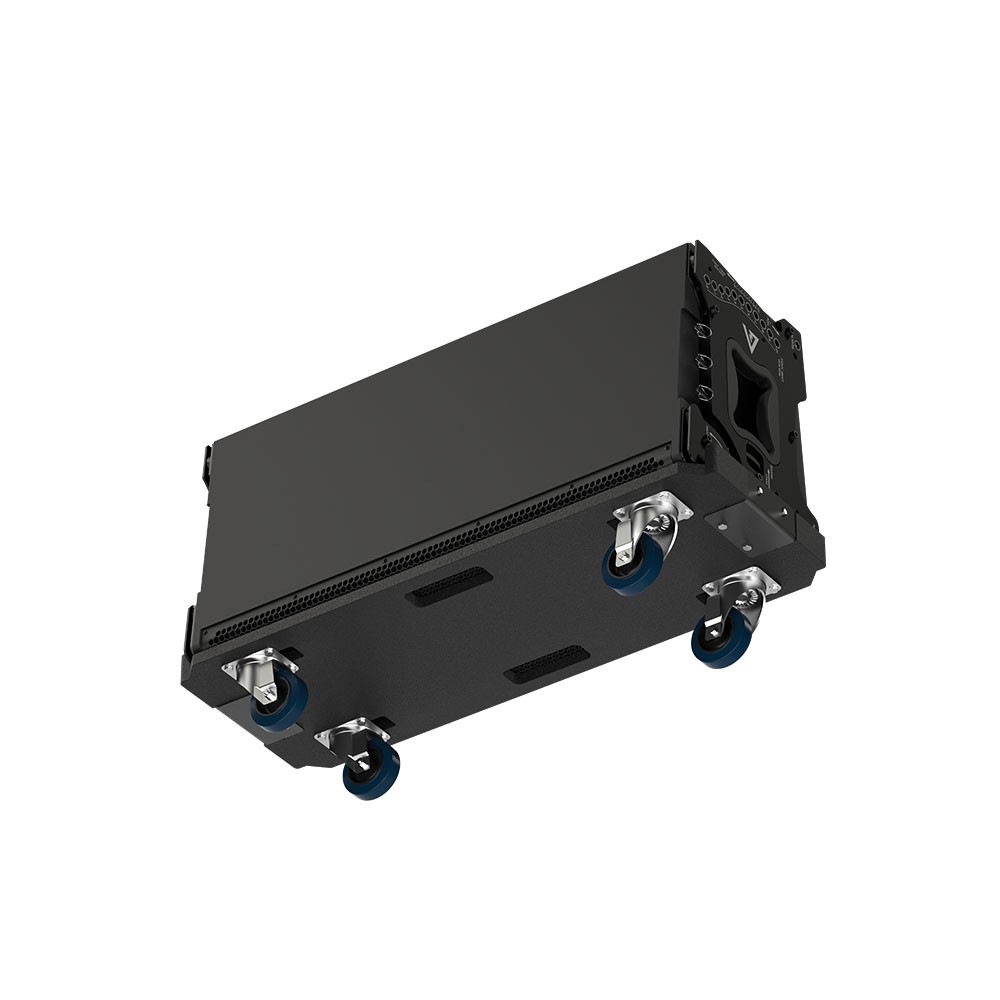

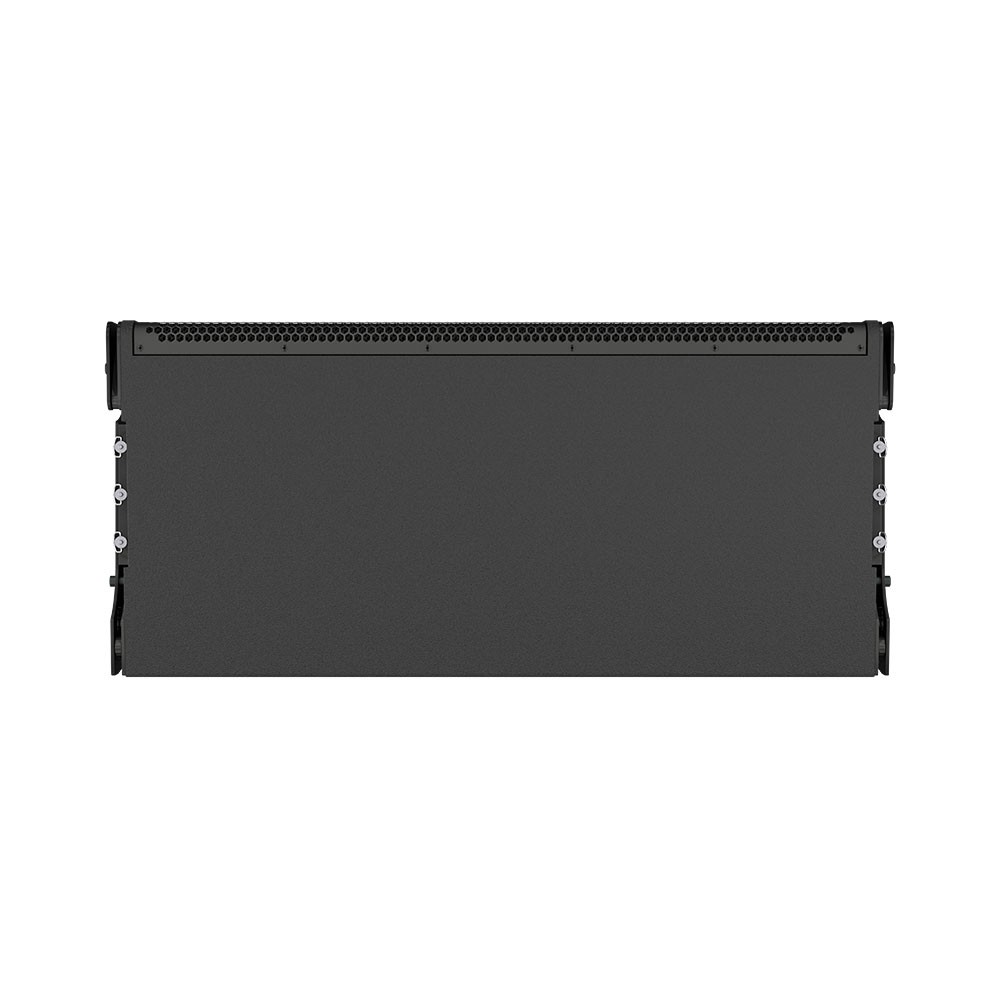

The ultimate mid-sized array line array module, HORNET 12 is dual 12”, quad 6”, dual 1,4” HF all-neodymium speaker with immense power handling capacity and maximum SPL output. Incorporating advanced flying hardware concept, HORNET 12 is rapidly mounted from ground carts, and is easily set and tuned-up due to natural, balanced sound and high quality, low distortion components.
Product description:
Passive line array module
Main features:
2600 W nominal power
Two 12” woofers with 4” voice coil
Four 6” midranges with 1,5” voice coil
Two 1,4” HF drivers
144 dB Max SPL

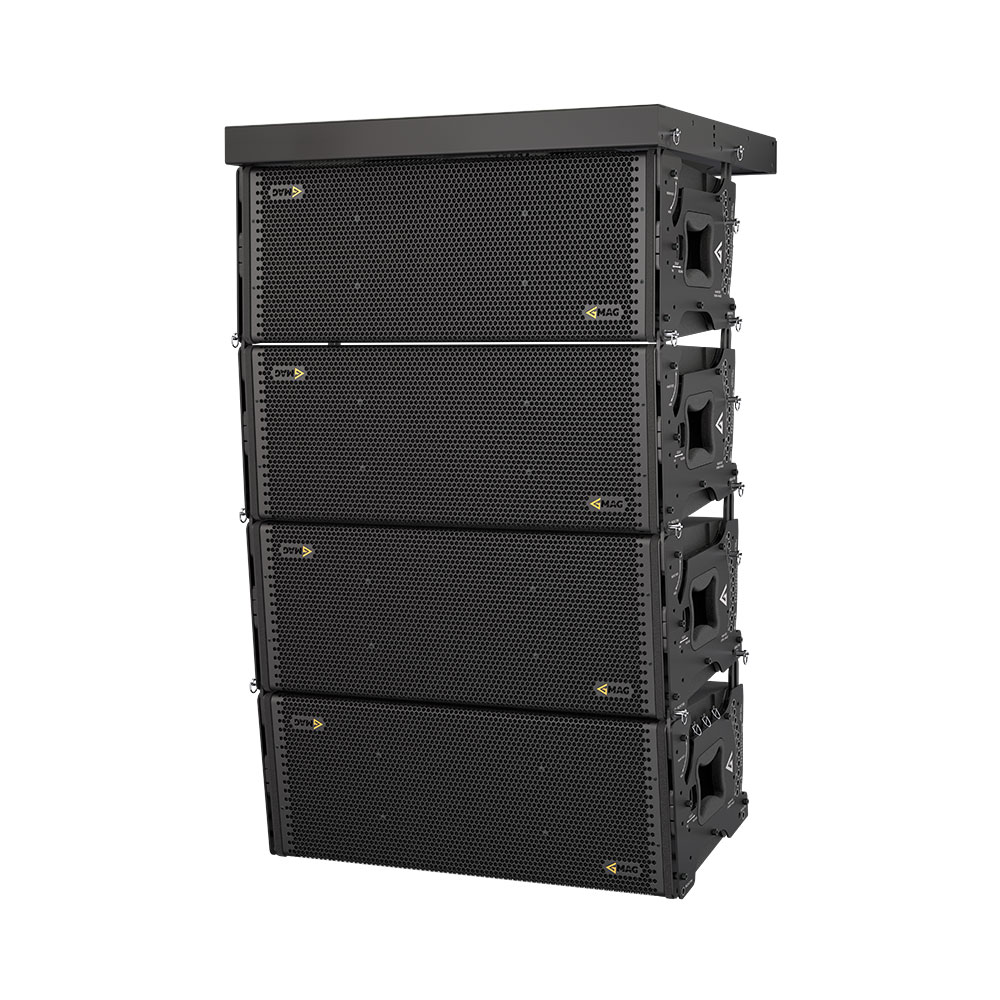

Integrated flying hardware
Type | Passive line array module |
Acoustical & Electrical data | |
Frequency response (-10dB) | 45 – 18000 Hz |
Peak SPL 1 | 144 dB |
Sensitivity (1W/1m) | 99 dB |
Sensitivity (1W/1m) (in detail) | 99 dB LF / 107 dB MF / 112 dB HF |
LF Driver | 2 x 12”, 4" VC |
MF Transducer | 4 x 6”, 1,5" VC |
HF Driver | 2 x 1,4”, 2,8" VC |
Nominal Coverage Angle (Horizontal × Vertical) | 110° x Depends on the number of cabinets |
Impedance | 8 Ohm LF1 / 8 Ohm LF2 / 8 Ohm MF / 8 Ohm HF |
Nominal power 2 | 2600 W |
Nominal power (in detail) 2 | 1000W LF1 + 1000W LF2 + 400W MF + 200W HF |

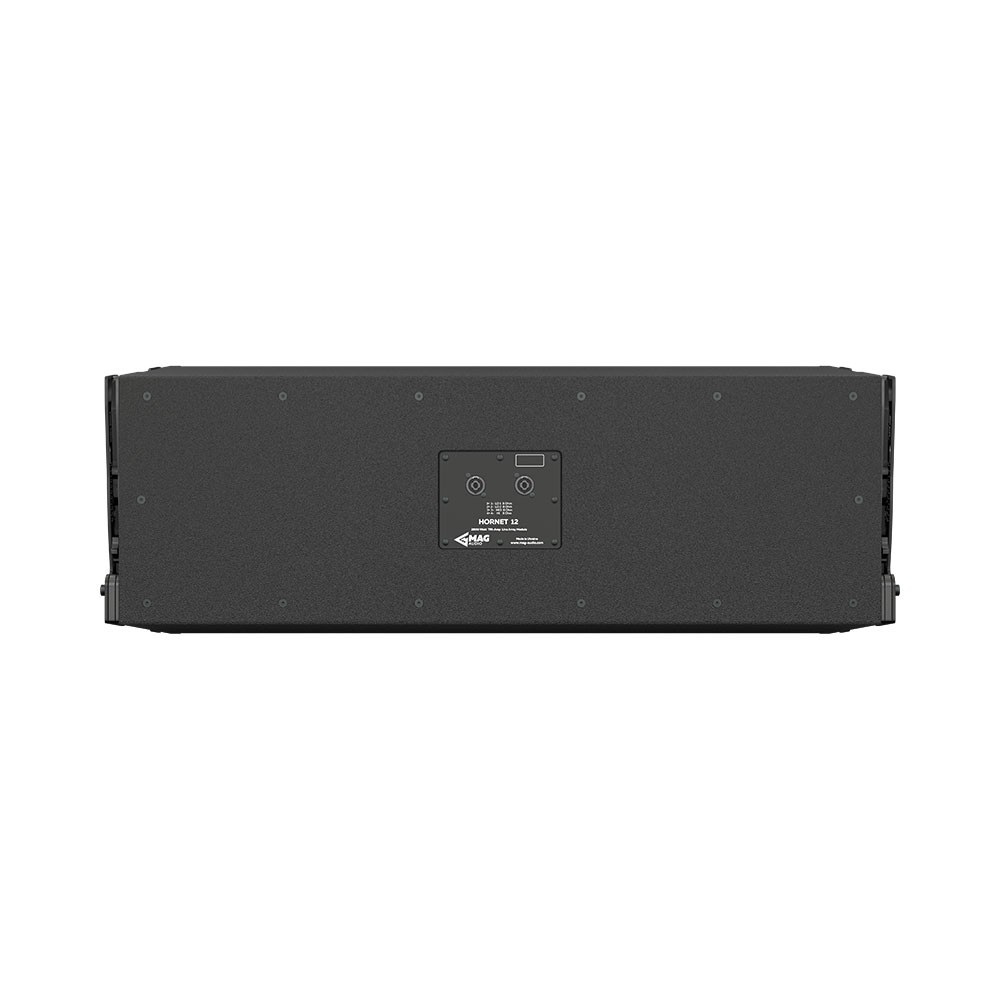

Connectors | 2 x NL8MPR Neutrik Speakon |
Connections and physical data | |
Dimensions (W x H x D) | 992 x 381 x 446 mm |
Net weight | 66 kg |
Shipping weight | 70 kg |

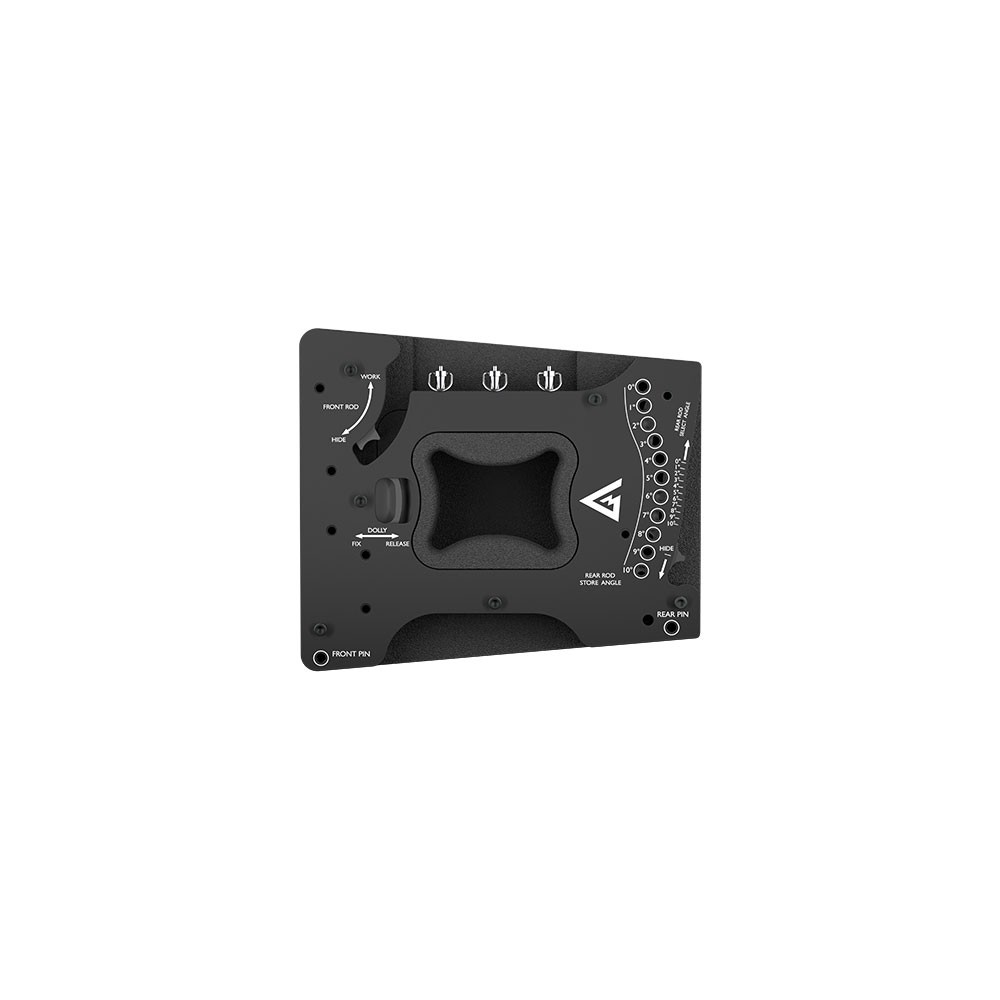

Mounting | Integrated flying hardware; 0° - 10° Sply angle |
Enclosure material | Plywood; wear-resistant paint |
Grill | Steel grill, polymere protective net |
1 peak value, calculated according to AES 2 - 2012
2 based on transducer power measured according to AES 2 - 2012
