KRIX

GRAPHIX MK2

CENTRE CHANNEL

Downloads

Placed above or inside cabinetry, the dynamic range and bass extension of the Graphix Mk2 will bring your multi-channel system to life.


The Graphix centre channel delivers precise timbral matching to the Krix Acoustix Mk2 main speakers. Working together, the speakers produce a seamless, dynamic and acoustically intricate multi-channel surround experience.

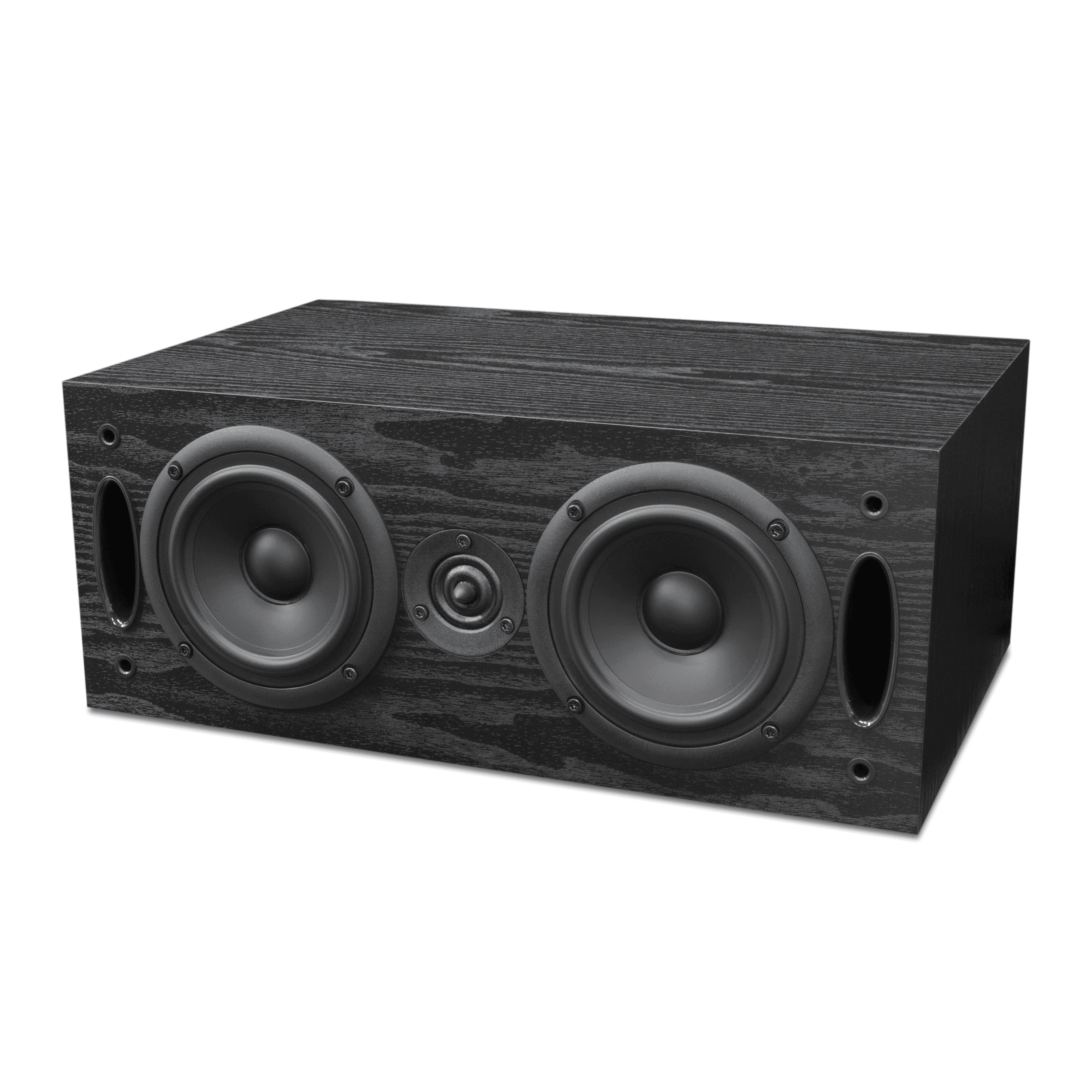

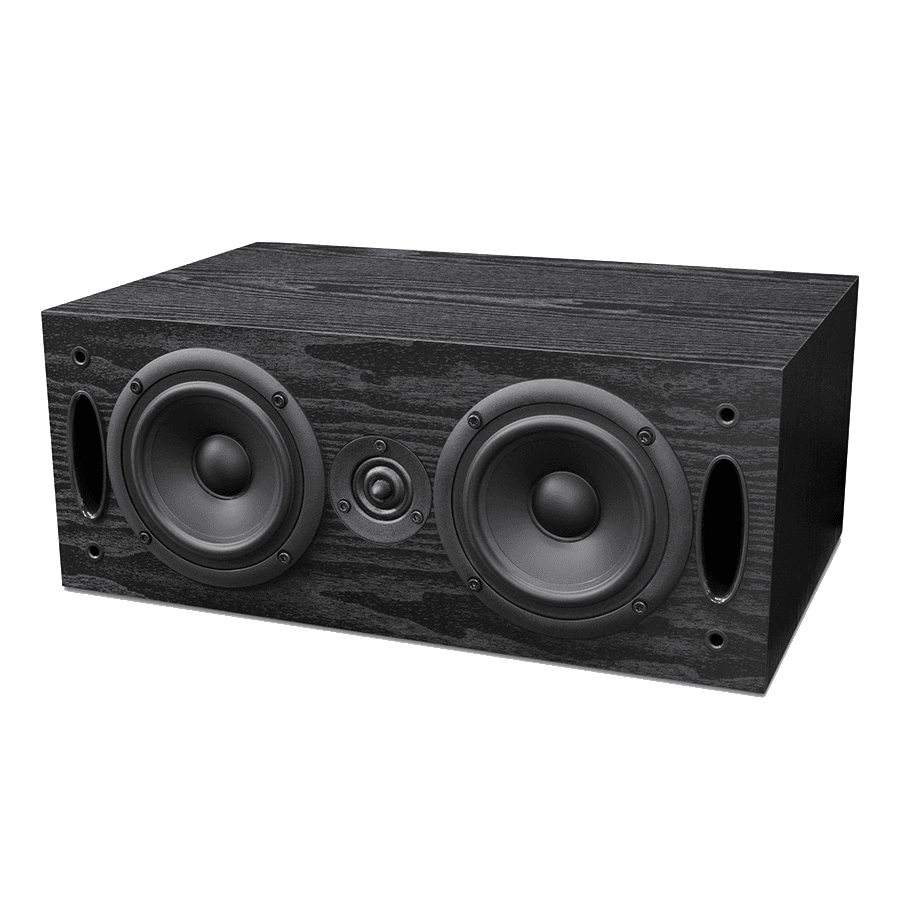

Dual 130mm bass/mid-range drivers, each with heavy-duty voice coils and a high powered magnet assembly, combine to deliver a powerful bass response. Highs are provided by a 26mm high frequency driver, with a wave-guide centre plug for controlled directivity and improved intelligibility and transparency.

A compact centre, also perfectly matched to any of the Krix main speaker range, the Graphix Mk2 gives you the ultimate flexibility to choose a home theatre system that suits your room. Thanks to its dual front firing vents, the Graphix can be placed inside cabinets and AV furniture, eliminating any ‘boomy’ bass resonance.

For the ultimate sound experience at home, play it through Krix.

Specification

Frequency range

45Hz-40kHz in room response


Power handling

20 – 160 Watts RMS recommended amplifier power


Sensitivity

89dB for 2.83 volts at 1 metre


Impedance

Nominally 6 Ohms (minimum 4.3 Ohms)


Configuration

D-Appolito, 2-way


Enclosure type

Bass reflex, front vented


Low frequency drivers

Fibre reinforced moulded polymer baskets with 2 x nominal 130mm (5″) doped paper cones. 25mm (1″) voice coil wound on high powered aluminium former, with vented magnet assembly


High frequency driver

26mm (1″) dual concentric diaphragm with wave guide centre plug for controlled directivity. Neodymium magnet


Input terminals

Gold plated binding posts


Dimensions

180mm high x 450mm wide x 300mm deep


Weight

10kg each
