GEFEN

EXT-USB2.0-SR

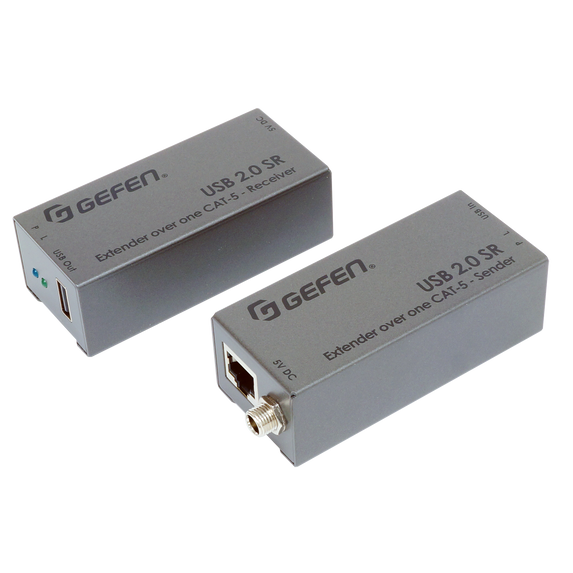

Gefen USB 2.0 SR Extender over one CAT-5 Cable

Downloads

Extend USB 2.0 up to 50 meters/165 feet, over a single CAT-5


Specification

USB 2.0 Speed: Up to 480 Mbps

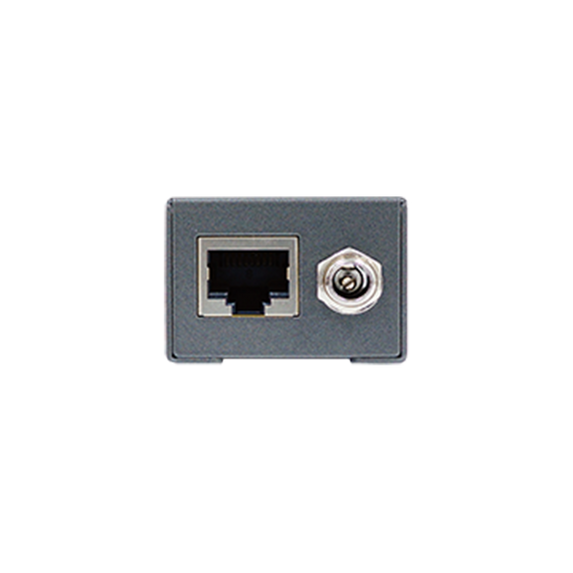

Link Connectors (Sender/Receiver):   RJ-45, Shielded
USB Connector (Sender): (1) USB type B
USB Connector (Receiver): (1) USB type A

USB Port Current Capability (Receiver): 2A at 5V DC

Link Indicator (Sender/Receiver):   (1) LED, green
Power Indicator (Sender/Receiver):   (1) LED, blue
Power Supply Connectors (Sender/Receiver):   Locking-type, 5.5mm barrel/2.5mm pin
Power Supply Voltage (Sender/Receiver): 5V DC
Power Consumption (Sender/Receiver): 0.65W/0.8W (maximum)
Operating Temperature:   +32 °F to +122 °F (0 °C to +50 °C)
Storage Temperature: -4 °F to 158 °F (-20 °C to 70 °C)
Operating Humidity: 5% to 90% relative humidity, non-condensing
Storage Humidity:   0% to 95% relative humidity, non-condensing
MTBF:   50000 hours
Dimensions (W x H x D) (Sender/Receiver):   3.4â€� x 1.1â€� x 1.5â€� (85mm x 28mm x 38mm)
Net Weight (Sender/Receiver):   0.3 lbs. (0.13 kg)
Shipping Weight:   2.2 lbs. (1 kg)

*  Features and specifications are subject to change without notice.
