GEFEN

Video

EXT-3G-HD-C

3GSDI to HDMI Converter. Converts 3G-SDI, Single-Link HD-SDI, and SD-SDI AV to HDMI

Description

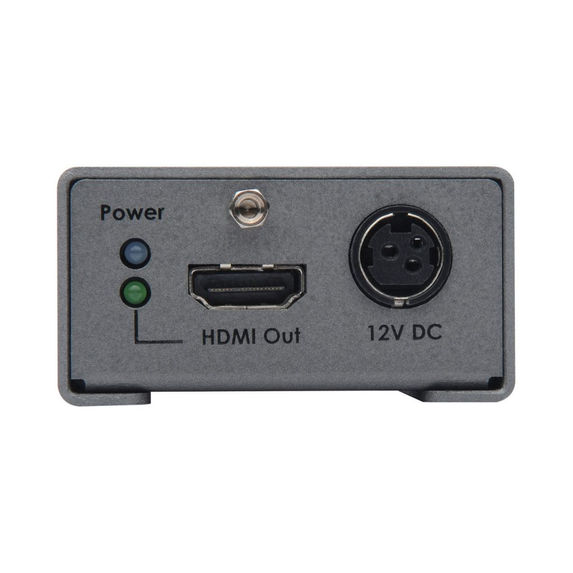

The Gefen EXT-3G-HD-C 3G-SDI to HDMI converter takes audio and video signal from SDI and converts it to  HDMI, at resolutions up to 1080p Full HD. This converters supports 3G-SDI and single link HD-SDI sources with up to 8 channels of LPCM audio.  The Gefen EXT-3G-HD-C's compact enclosure, while light enough to be held in place using double sided Velcro® tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-3G-HD-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.


Video Support

This converter supports input resolutions up to  1080P (1920 x 1080 at 60 Hz 10- Bit 4:4:4 (RGB or YCbCr) and output resolutions up to 1080p Full HD (1920 x 1080 at 60 Hz 10- Bit 4:4:4 (RGB or YCbCr).


Audio Support

The EXT-3GHD-C supports stereo and multuchannel audio up to LPCM 7.1


Syner-G Support

This product is fully compatible with the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specific(more...)
