KRIX

EQUINOX MK5

BOOKSHELF

Downloads

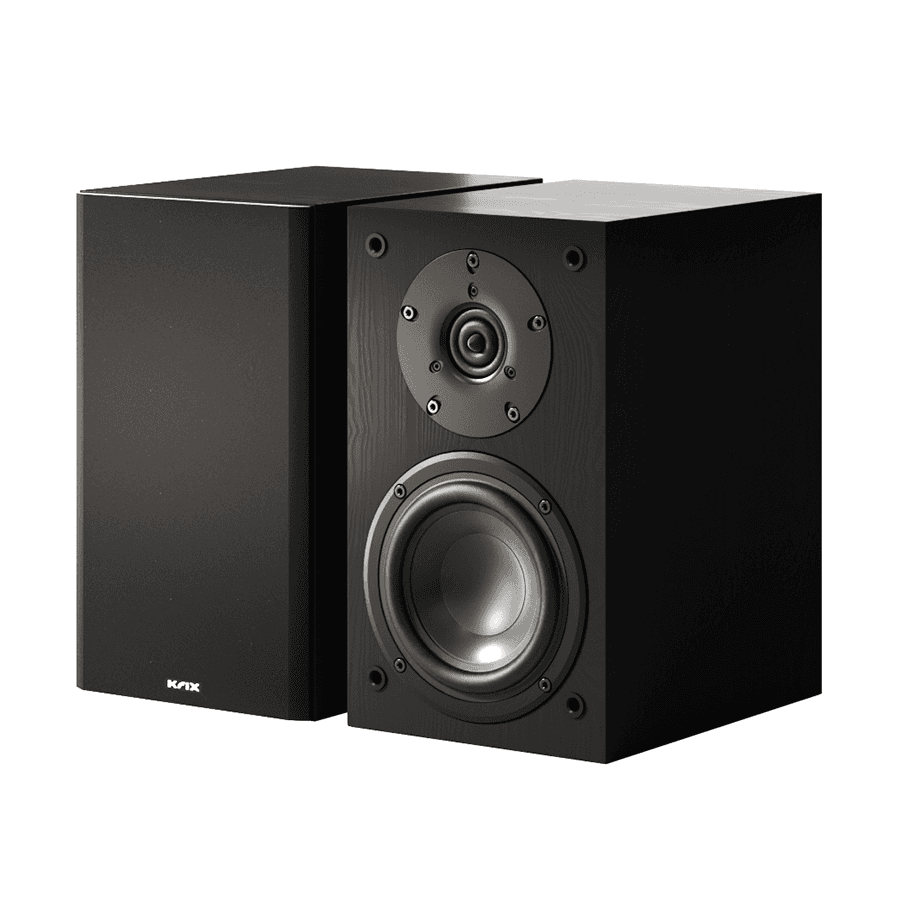

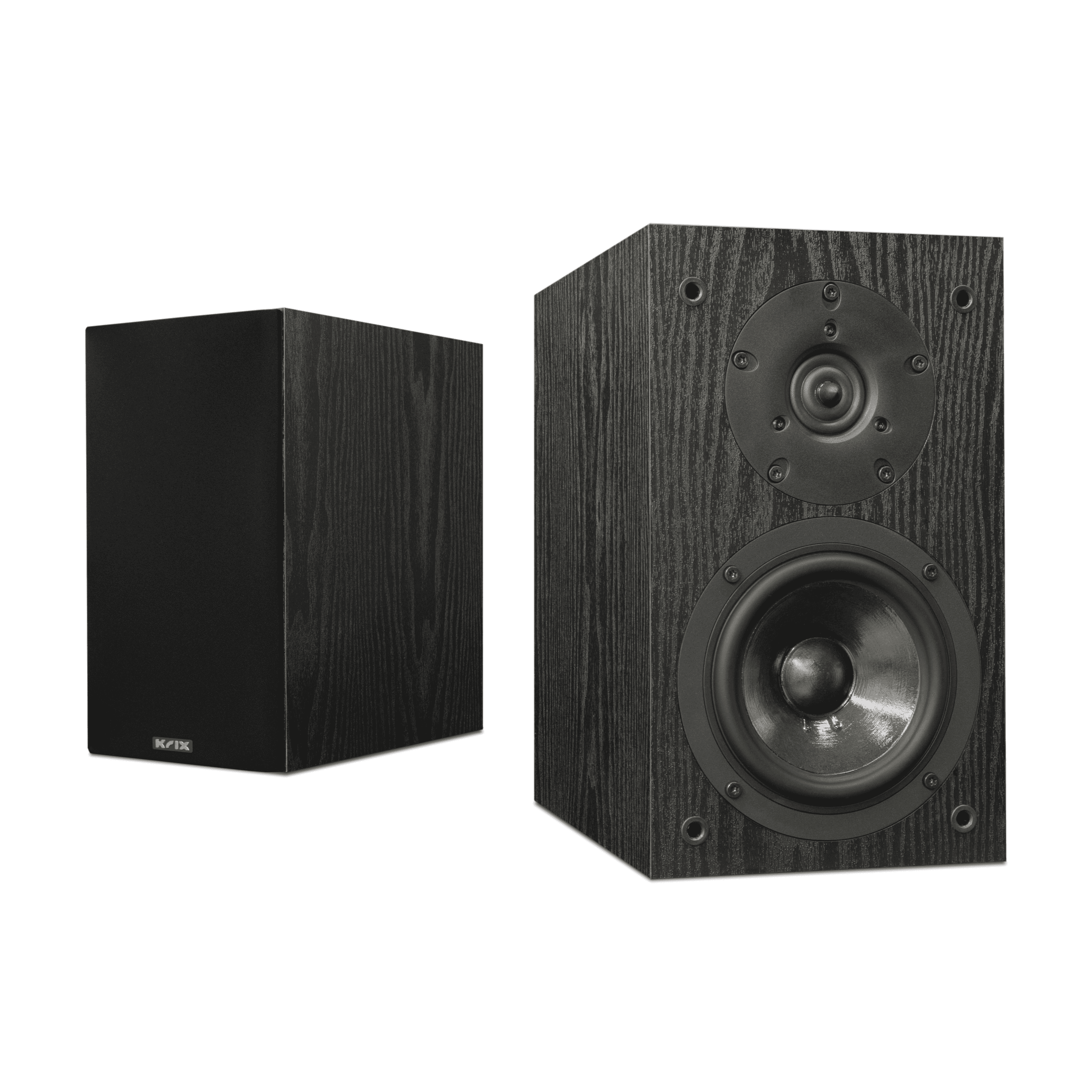

A favourite among 2 channel enthusiasts, this compact bookshelf speaker will bring your music collection to life. On stands or mounts, they can also provide surround effects for your multi-channel system.



For a big sound from a small speaker, the Equinox Mk5 will astonish and surprise.  With finesse and power punching well above its weight, it can be tucked-away while still filling the room with sound.

Deceptively compact, the Equinox Mk5 are ideal for 2 channel hi-fi – allowing you to play your favorite records, CD’s or digital files with clarity – but can also be used on stands as side or rear surround speakers in a Krix home theatre.

The mid-range and bass come from a high grade 130mm driver with a doped curvilinear paper cone, over-sized voice coil, and powerful magnet, while extended frequency response is delivered through a 26mm ring radiator tweeter. Combined with its bass reflex design, the result is an efficient but balanced bass sound with a revealing, detailed high end, performing well beyond the relatively small cabinet size of the speaker.

For the ultimate sound experience at home, play it through Krix.

Specification

Frequency range

45Hz-40kHz in room response


Power handling

20 – 120 Watts RMS recommended amplifier power


Sensitivity

88dB for 2.83 volts at 1 metre


Impedance

Nominally 6 Ohms (minimum 3.6 Ohms)


Configuration

2-way


Enclosure type

Bass reflex, rear vented with internal bracing


Low frequency driver

Cast aluminium basket with a nominal 130mm (5″) doped curvilinear paper cone. 30mm (1.2″) vented magnet voice coil wound on high temperature kapton former, with copper shorting ring


High frequency driver

26mm (1″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion


Input terminals

Gold plated binding posts


Dimensions

295mm high x 175mm wide x 235mm deep


Weight

6kg each
