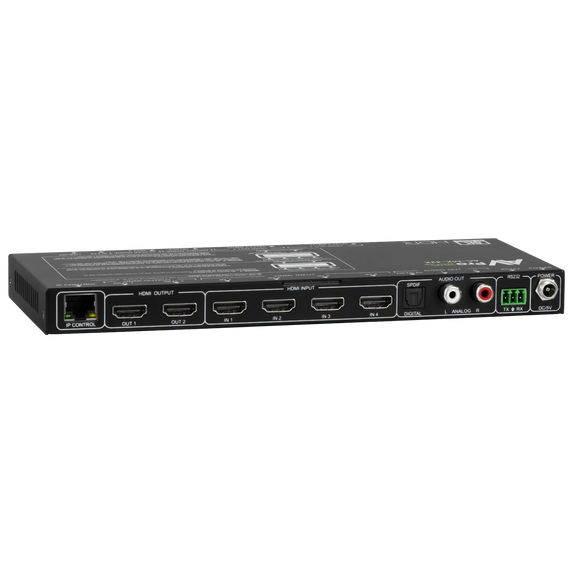

AC-MX-42X

40Gbps 8K 4x2 HDMI Matrix Switcher

Description

The AC-MX-42X is a four-input, dual-output HDMI matrix switcher. It supports HDMI 2.1, HDCP 2.3, and up to 8K video resolution with 40Gbps bandwidth capacity. This matrix switcher is perfect for working with the latest gaming consoles, streaming devices, and satellite receivers, connecting them to 8K TVs and projectors. In addition, this matrix equalizes and amplifies the output to ensure HDMI signals will transmit through long HDMI cables without losing quality.


Our best developers have been hard at work bringing our integrators an easy-to-use web-based user interface that allows them to set up, troubleshoot, and control this 8K 4x2. The AVPro Edge User Interface (AEUI) allows for easy configuration and setup. This 8K matrix switcher also comes with a screen on the unit that can tell you the IP address for connecting directly to your control system.


From built-in scaling to complete EDID control and configuring, you can customize every aspect of this device to work perfectly for your system.


NOTE TO DESIGNERS, INSTALLERS, AND TECHNICIANS

When used with an AVR or a Pre-processor as an HDMI video bypass around outdated onboard AVR or Pre-processor HDMI video signal technology, especially when introducing a Next-Gen video display into a system while retaining an existing AVR or Pre-processor that remains compatible with current immersive audio codec reproduction, the following must be noted: When the main HDMI video display output of the bypassed AVR or Pre-processor is left untethered to an EDID-producing device, the AVR or Pre-processor has no means for EDID negotiation or authentication. As a result, source devices fail to detect an active EDID-managed HDMI path. An AVR or Pre-processor may not fully activate or switch to the desired input for audio capture if no active output is detected or fails to enable proper input signal processing.

BEST PRACTICE is for the AVR or Pre-processor to terminate into a device that produces an active EDID, which serves to “trick” the AVR or Pre-processor into continuing to function as designed (with a video signal and multi-channel audio selected at one of its inputs, expected to transfer the video signal to a display device with EDID authentication). An AVPro Edge AC-SC-1X or AC-DA12-AUHD-GEN2 with EDID management is ideal for overcoming this anomaly as both have EDID management capabilities; however, any device capable of producing an EDID compatible with maintaining the AVR’s or Pre-processor’s stability may be utilized.


8K Home Theater Upgrade: Do you want to offer your current customers an 8K Home Theater? For your customer to connect multiple sources that are both 8K & 4K, they must have a Matrix Switcher. Displays have one HDMI port that is better than the others. Connecting to the 8K 4x2 allows users to use the best HDMI port all the time and get the most optimized pictures possible. You can now have your gaming console, streaming device, and satellite receiver connected to a controllable matrix switcher that works with any 3rd party control system like Control 4, Crestron, or Josh.ai.



Legacy (4K/1080p) AVR Workaround: With 8K Televisions and 8K gaming consoles being a standard part of every luxury home, integrators can run into significant problems using an AVR to route massive 8K signals. With AVPro Edge's 8K 4x2 matrix switcher, you can cleanly route uncompressed video from 8K & 4K sources directly to your 8K display or projector. At the same time, you can send a down-scaled signal to your AVR. This workaround ensures you get the highest quality sound without having to sacrifice your video.


With this device, you can send 8K HDR content with full bitstream audio from HDMI 2.1 sources like Xbox Series X or PS5 gaming consoles directly to your TV and have a down-scaled mirrored output go to your current AVR. You to use the AVR already in the system while still delivering a complete 8K system.


Dual Output for working with Dual Screens: This matrix switcher has two outputs allowing you to control the content on two different 8K displays. Perfect for condo or apartment installations where 8K televisions are being installed or add a second display to your home theater mounted near a home bar or the adjacent room.


Downscale the same 8K signal for the 4K/1080p display: With the built-in downscaler, you can have the second display be a 4k or even 1080p legacy model and send full 8k content to the TV that can handle it. This ability to downscale gives your customers what they want, a picture on the 8K screen, while not worrying about HDMI compatibility issues.
