AV PRO EDGE

AC-CXWP-HDMO-BKT

AC-CXWP-HDMO-BKT

Basic HDMI Wall Plate Kit

Downloads

  • HDMI 2.0 Input

  • HDCP 2.2

  • Single-gang, Low Heat

  • Not for use as a Tx or Rx for any matrix switch


Please note, this product must be used as a transmitter and receiver kit. It will not work as a transmitter or receiver for any matrix switch.

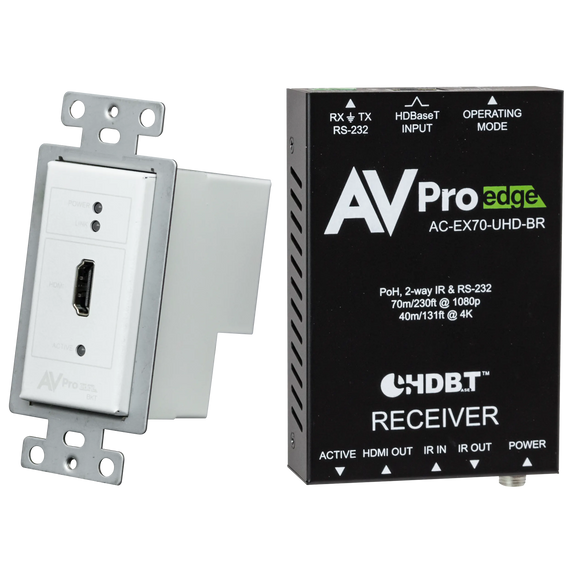

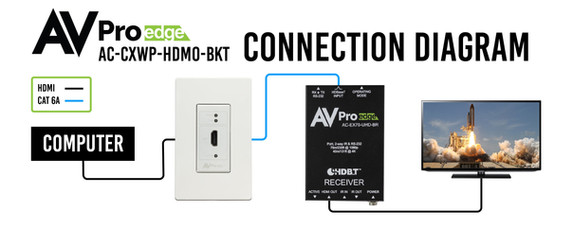

This basic HDBaseT wall plate transmitter/receiver kit is a cost-effective HDMI extension product from AVPro Edge’s ConferX line. Able to handle 4k at 10.2 Gbps, this single gang wall plate transmitter fits in any standard mud ring and works with standard category cable to deliver a stable signal long distances. This extender kit can send a 4k signal 40 Meters and a 1080p signal 70 meters using CAT6a with HDBaseT technology.

This is the ideal video extension solution for single office settings, home theaters, conference rooms, huddle spaces, and any other place you need to deliver an HDMI signal over a long distance. Perfect for any basic HDMI extension job and able to handle resolutions from PCs, Apple products, Tablets, Blu-ray Players, or any other HDMI source outputting 4K at 30hz.


In the Box

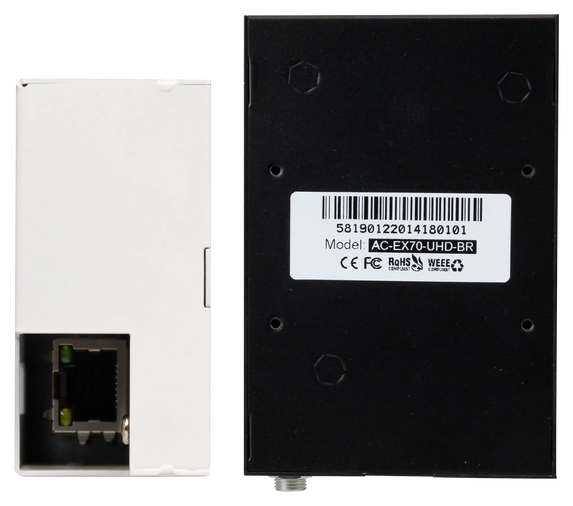

  • AC-CXWP-HDMO-T (Transmitter)

  • 1 x decora wall plate cover (white)

  • 2 x long electrical outlet screws

  • AC-EX70-UHD-BR (Receiver)

  • 12V 2A Locking Power Supply

  • 2 x Mounting Brackets

Specification
