AC-AXION-X

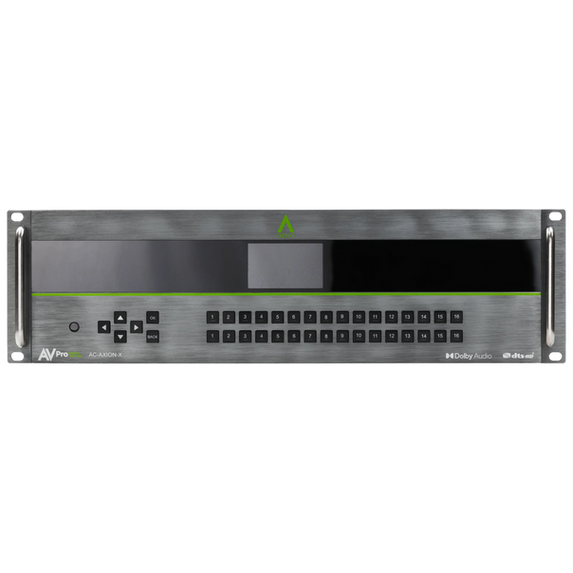

AXION X Matrix Chassis

Description

AXION X defines AVPro Edge’s expression for the current state-of-the-art in 4K matrix switchers. Featuring a chassis-based modular card architecture and custom-configurable for as many as 16 inputs by 16 outputs, AXION X is a world-class device deserving of your full attention.


Design and engineering was focused at fully addressing the needs expressed by custom integrators for a complete, synergistic, diversified product solution that would effectively manage any 4K video signal containing static or dynamic metadata, a companion high bitrate audio codec providing an immersive soundtrack, plus assorted system control signals.


AXION X is outfitted with a sophisticated suite of flexible features enabling integrators to autonomously craft input and output signal routing for audio, video, or control to meet any system requirement and to overcome unexpected on-site obstacles head-on.


How to order the AXION customizable matrix switch:

  1. Order the Base Chassis

  2. Determine the needs of the Installation

    1. How many Inputs? (input cards come in pairs, so you will always have an even number)

    2. How many Outputs? (Output cards also come in pairs)

    3. Will I need Audio Downmixing? How many sources will I need to downmix?

  3. Order Input and output cards



If you have any HDBaseT inputs or outputs, you will want to make sure you have transmitters or receivers to work alongside them.



Input Cards:

  • AC-AXION-IN-AUHD: Dual 18Gbps HDMI input ports with dual HDMI loop out ports

  • AC-AXION-IN-AVDM: Dual 18Gbps HDMI input ports that downmix 8+ channel audio to two-channel via the audio extraction port and dual HDMI loop out ports

  • AC-AXION-IN-MCS: Dual 18Gbps HDMI input ports with dual HDMI loop out ports and MCS (Mission Critical Scaling)

  • AC-AXION-IN-HDBT: Dual 18Gbps ICT HDBT input ports with a single mirrored HDMI port

  • AC-AXION-IN-AUDIO: Dual RCA 2 Channel and Toslink inputs.




Output Cards:

  • AC-AXION-OUT-AUHD: Dual 18Gbps HDMI output ports

  • AC-AXION-OUT-MCS: Dual 18Gbps HDMI output ports with MCS (Mission Critical Scaling) and a single mirrored HDMI port

  • AC-AXION-OUT-HDBT: Dual 18Gbps ICT HDBaseT output ports with a single mirrored HDMI port
